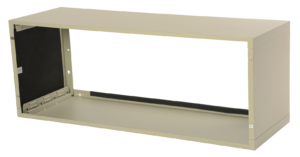

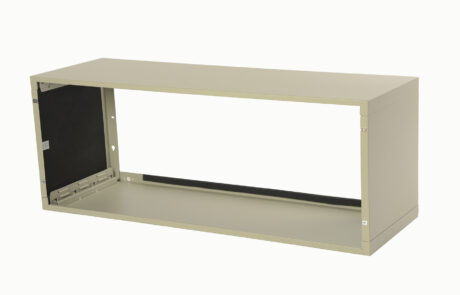

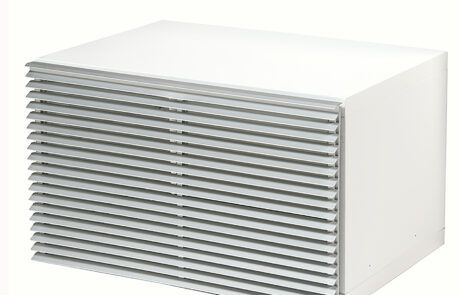

Heavy duty SnapEase PTAC wall sleeves are a great choice for both residential and commercial applications. SnapEase wall sleeves are designed to fit industry standard 42-inch wide and 16-inch high PTAC units. They are lined with thick 0.25-inch acoustical and thermal Insulation to minimize heat loss and prevent sleeve sweating while reducing outdoor noise transmission into the room.

• Dimensions: 42-in (L) x 16-in (H) x 13.75-in (D)
• Easy and effortless snap together design
• Welded non-Leak front corners (no sealant or caulk)
• Made of heavy duty 20 gauge Galvanized steel
• Shipped in an ultra-thin 3-in carton (45.5-in x 15-in x 3-in)

Part Number: PTAC-SLEEVE-SE-INS

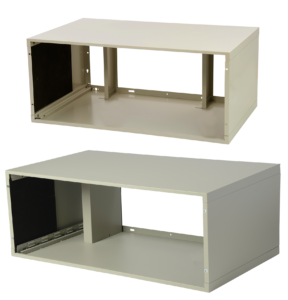

Heavy duty galvanized steel, extended depth SnapEase PTAC wall sleeves are perfect for deep wall applications. The extended wall sleeves are available with 18-in, 20-in and 24in depths and designed to fit industry standard 42-inch wide and 16-inch high PTAC units. They are lined with thick 0.25-inch acoustical and thermal insulation to minimize heat loss and prevent sleeve sweating while reducing outdoor noise transmission into the room.

•  Dimensions: 42-in (L) x 16-in (H) x 18-in (D) 18-inch deep
• 42-in (L) x 16-in (H) x 20-in (D) 20-inch deep
• 42-in (L) x 16-in (H) x 24-in (D) 24-inch deep
• Easy and effortless snap together design
• Welded non-leak front corners (no sealant or caulk)
• Made of heavy duty 20 gauge Galvanized steel
• Air splitter to prevent air recirculation
• Powder coated painted for superior adhesion & protection

Part Numbers:
SLEEVE-EXT18-1PK (18-In Depth)
SLEEVE-EXT20-1PK (20-in Depth)
SLEEVE-EXT24-1PK   (24-in Depth)

Sleeve extensions are problem solvers. They can be attached to standard and extended wall sleeves to increase the wall sleeve depth for deep wall application. Sleeve extensions come with splitters to prevent air recirculation.

• Dimensions: 42-in (L) x 16-in (H) x 2-in (D)
• Made of heavy duty 20-gauge Galvanized steel.
• Powder coat painted for superior adhesion & protection
• Fully assembled & easy to install.
• Lined with thick 0.25-inch acoustical & thermal insulation.

Part Number:  SLEEVE-EXT-2IN

The Friedrich® T-series and ZoneAire wall sleeve adapter converts a narrow 11.5-inch wall sleeve to an industry standard 14-inch deep wall sleeve. The extension is constructed of 20-gauge Galvanized steel. It is designed to seal to the existing wall sleeve while increasing the room side depth by 3 inches to accommodate standard PTAC units.

• Dimensions: 42-in (L) x 16-in (H) x 3.0-in (D)
• Fully assembled & easy to install.
• Lined with thick 0.25-inch acoustical & thermal insulation.
• Powder coated painted for superior adhesion & protection.

Part Number:  FR-SLEEVE-EXT

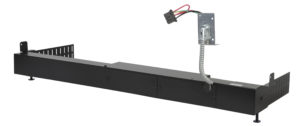

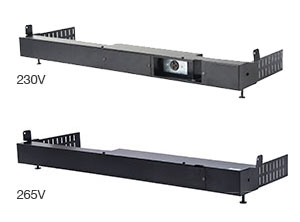

The electrical subbase with a pre-wired hardwire whip provides a permanent power connection for a PTAC unit. Electrical hard wiring is required when NEC (National Electrical Code) or local codes restrict the use of power cord and plug connections.  Mechanical features are the same as the non-electrical subbase. This product is specifically made for certain PTAC manufacturers. (See manufacturer cross-reference table)

• 21 inches of flexible steel conduit.
• Contains a quick disconnect for servicing unit.
• Available for 208/230V and 265v applications.
• Multiple electrical knockouts for fast and easy installation.
• Optional field installed Disconnect Switch and Fuse available.

Part Numbers: SUBBASE-HW-230V-15A, SUBBASE-HW-265V-15A, SUBBASE-HW-230V-20A, SUBBASE-HW-265V-20A, SUBBASE-HW-230V-30A, SUBBASE-265V-HW-30A

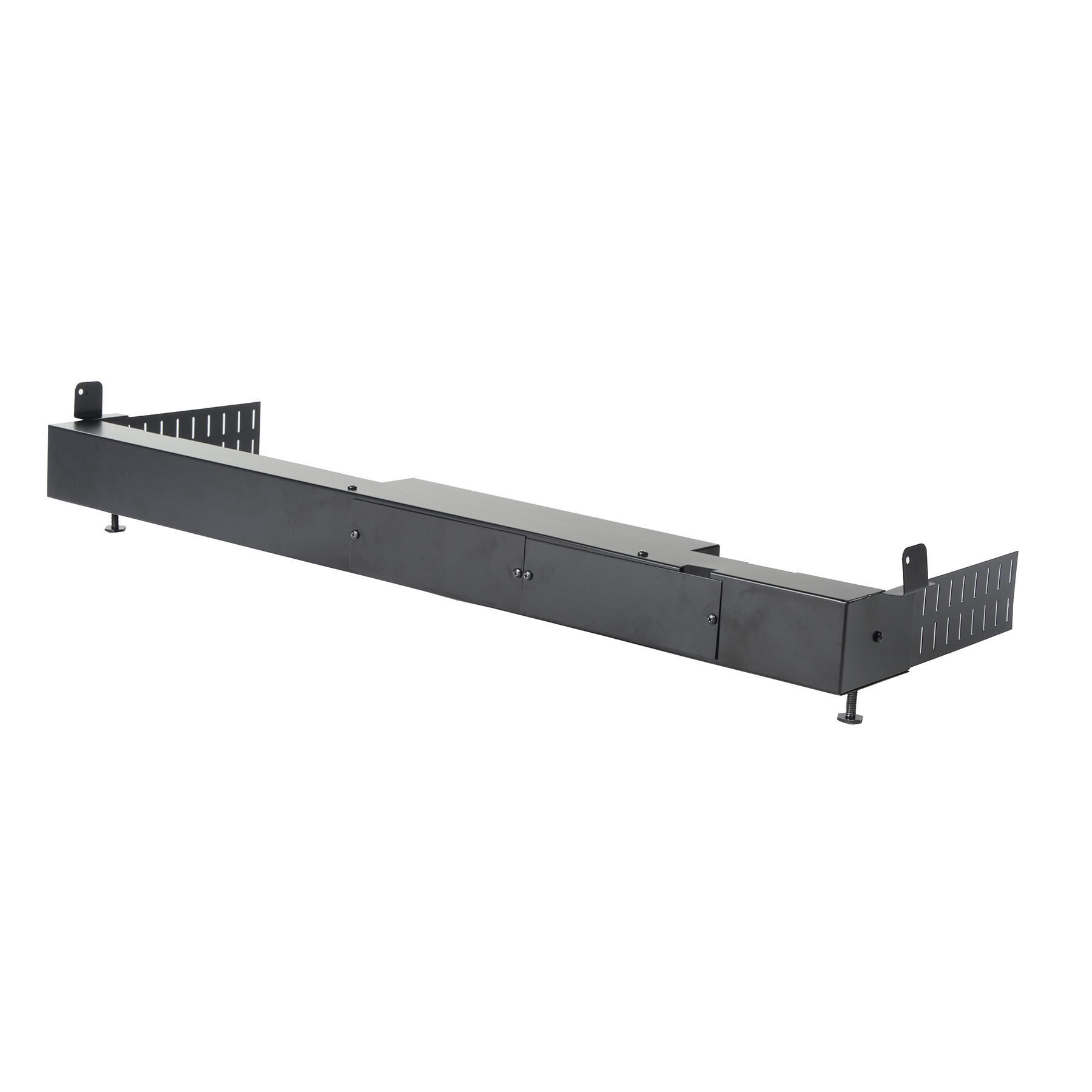

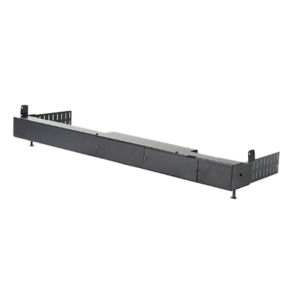

The universal subbase is made of heavy gauge steel to offer mechanical support for the wall sleeve and unit. It provides accurate leveling to maintain the correct pitch for drainage and prevent the PTAC unit from cantilevering into the room.

• Mounts easily and securely to wall sleeve.
• Decorative side skirting for finished appearance.
•  Dual adjustable legs for accurate leveling.
• Adjustable height of 3 to 5½ inches from finished floor.
• Minimum clearance between wall sleeve front and finished wall is 2¾”.

Part Number: PTAC-SUBBASE-A

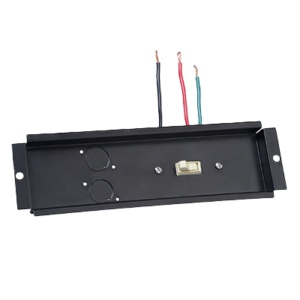

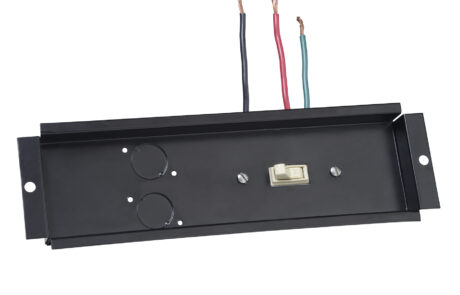

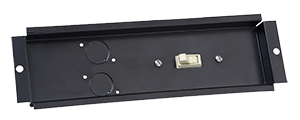

This Subbase Disconnect Switch mounts quickly and easily in the subbase. This switch module provides a physical power disconnect for a PTAC unit when required by NEC (National Electric Code) or local codes.

• Rated for 208/230 & 265 volts.
• DPST Switch configuration.
• 30 amps max current rating.

Part Number: SUBBASE-SWITCH-A

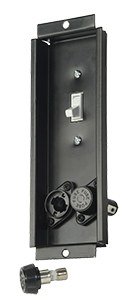

The subbase fuse kit provides both a power disconnect switch and single over-current protection to both electrical legs. The switch provides a physical power disconnect for a PTAC unit. The fuse holders mount in the subbase to provide in-line over-current protection at the unit when required by NEC (National Electric Code) or local codes.

• DPST Switch,  30 amps max rating.
• Two (2) fuse holders and cartridge fuses included.
• Fuse cartridges are rated for 208/230 & 265 volts.
• Available with 15, 20 and 30-amp rating.

Part Numbers:
SUBBASE-FUSE-15A
SUBBASE-FUSE-20A
SUBBASE-FUSE-30A

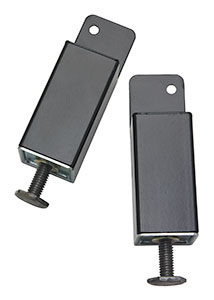

Subbase leveling legs can be used as a substitute for a full subbase. They offer support for the weight of the unit and accurate leveling to maintain the correct pitch for drainage.
Two (2) legs per pack.

• Made of strong 20-gauge steel.
• Installs quickly and easily to the wall sleeve.
• Adjustable leg for accurate leveling.
• Adjustable height of 3 to 5½ inches from finished floor.

Part Number: LEVELING-LEGS
